The unpleasant odour and smell are often associated with industrial activities, especially within the area of municipal wastewater collection and treatment, at wastewater treatment and sludge treatment plants, near sewerage systems, at landfills and composting plants, during food or chemical industry. The VENTUS Biofilter system, using the biodegradability of microorganisms, is an environmentally friendly, sustainable and safe solution to eliminate odour problems.

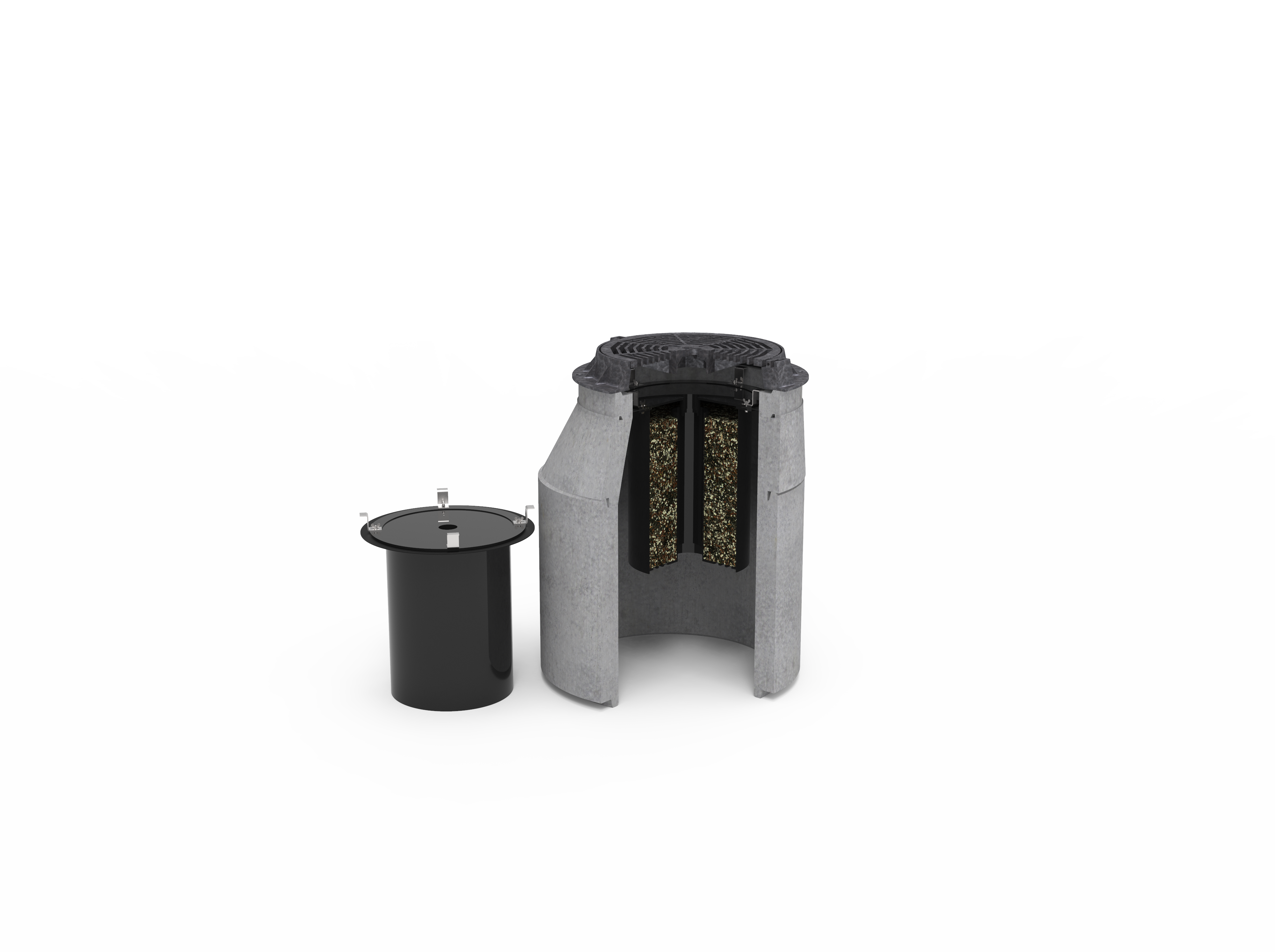

VENTUS G is developed for gullies and manholes. If there is odor problem with the canalization (combined sewer) VENTUS G solves it. It fits to the 600 mm manhole gratings. Let the air out from the canalization and allow the runoff water to the sewer through the system with the special flexible non return valve. The VENTUS G produced three different sizes 10, 20 and 30 m3/h.
- Let the air out from the canalization
- allow the runoff water to the sewer
- special flexible non-return valve
- Unique design
- Long-life, efficient solutions
- Low maintenance cost
- VENTUS G is developed for gullies and manholes
Fields of application
- VENTUS G is developed for gullies and manholes
- combined sewer
- industry
- manhole insert
Advantages of the product
- It fits the 600 mm manhole gratings
- Produced three different sizes 10, 20 and 30 m3 /h
- in case of odor problem VENTUS G solves it
Key benefits
- filling material is extremely stable, durable
- meet international standards
Technical data
- Capacity
- 10-30 m3/h
- Diameter
- 500 mm
- Material
- PE-HD, PP-H, PVC. The filter media is an environmentally friendly material

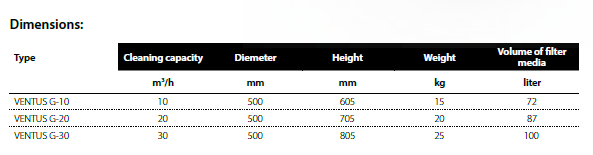

Dimensions
- Height
- 605-805 mm
- Filter media
- 72-100 l
- Weight
- 15-25 kg
